200 Series Toyota LandCruiser
High Performance Air Cleaner Housing + Filter Kit
The XLC200K Air Cleaner Housing + Filter Kit is meticulously engineered with Donaldson's advanced PowerCore® filtration technology, providing superior engine protection and exceptional performance in a compact, easy-to-install system.
Enhanced Performance. Superior Protection.
Air intake systems are crucial for delivering clean air to your engine.
Improper filtration systems can lead to increased fuel consumption, excessive engine damage, and unscheduled servicing.
Engineered using Donaldson's proprietary filtration technology, the robust, compact Donaldson PowerCore® 4x4 airbox and filter element outperforms standard OEM panel filters with:

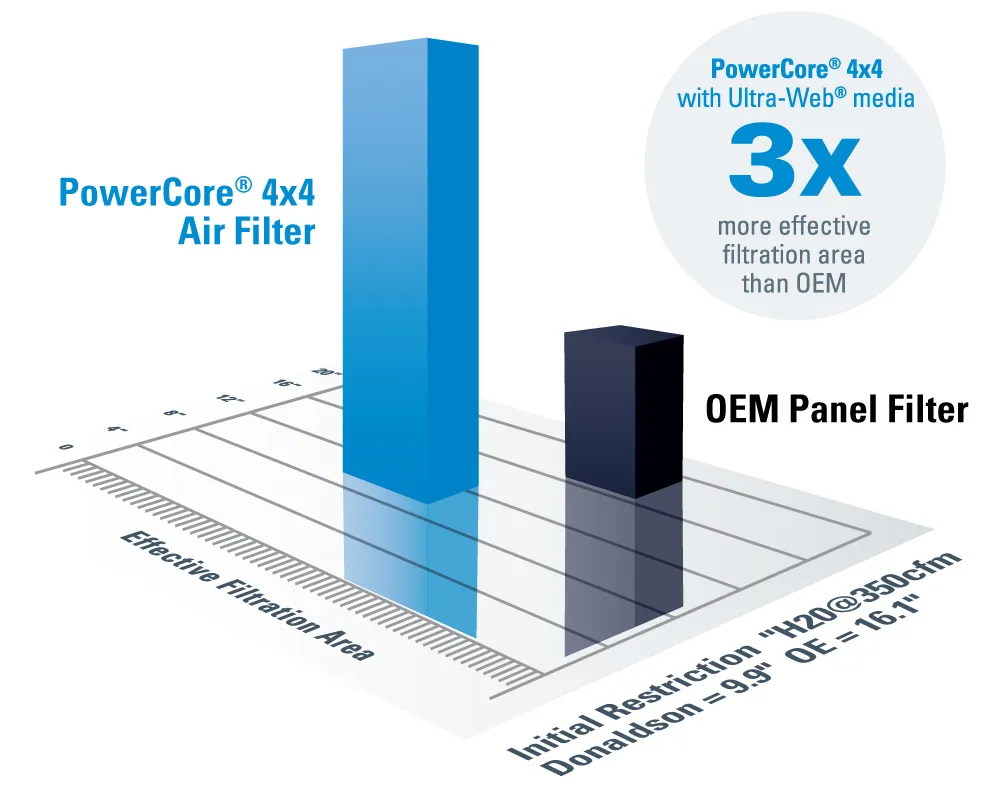

- 3x more effective filtration area — giving your engine more room to breathe and reducing airflow restriction by over 30%.
- Lower initial restriction at equal airflow — meaning your engine runs smoother, with better performance and fuel efficiency.
- Proven performance under ISO5011 standards — delivering 99.99% filtration efficiency, compared to 99.87% from OEM panel filters, for superior protection against harmful contaminants.
The Key Advantages of PowerCore® 4x4
High-Efficiency Filtration
Outperforms standard cellulose filters with higher initial efficiency.
Long-lasting Protection
Maintains consistently high efficiency throughout its lifespan.
Ultimate Engine Safety
Protects against sub-micron particles for industry-leading engine protection.
Extended Filter Life
Exceptional dust-holding capacity for longer-lasting performance
PowerCore® 4x4 housings and filter kits have become the benchmark for high-performance, reliable filtration in the most challenging terrain.
Equip your LandCruiser with the best—choose Donaldson.

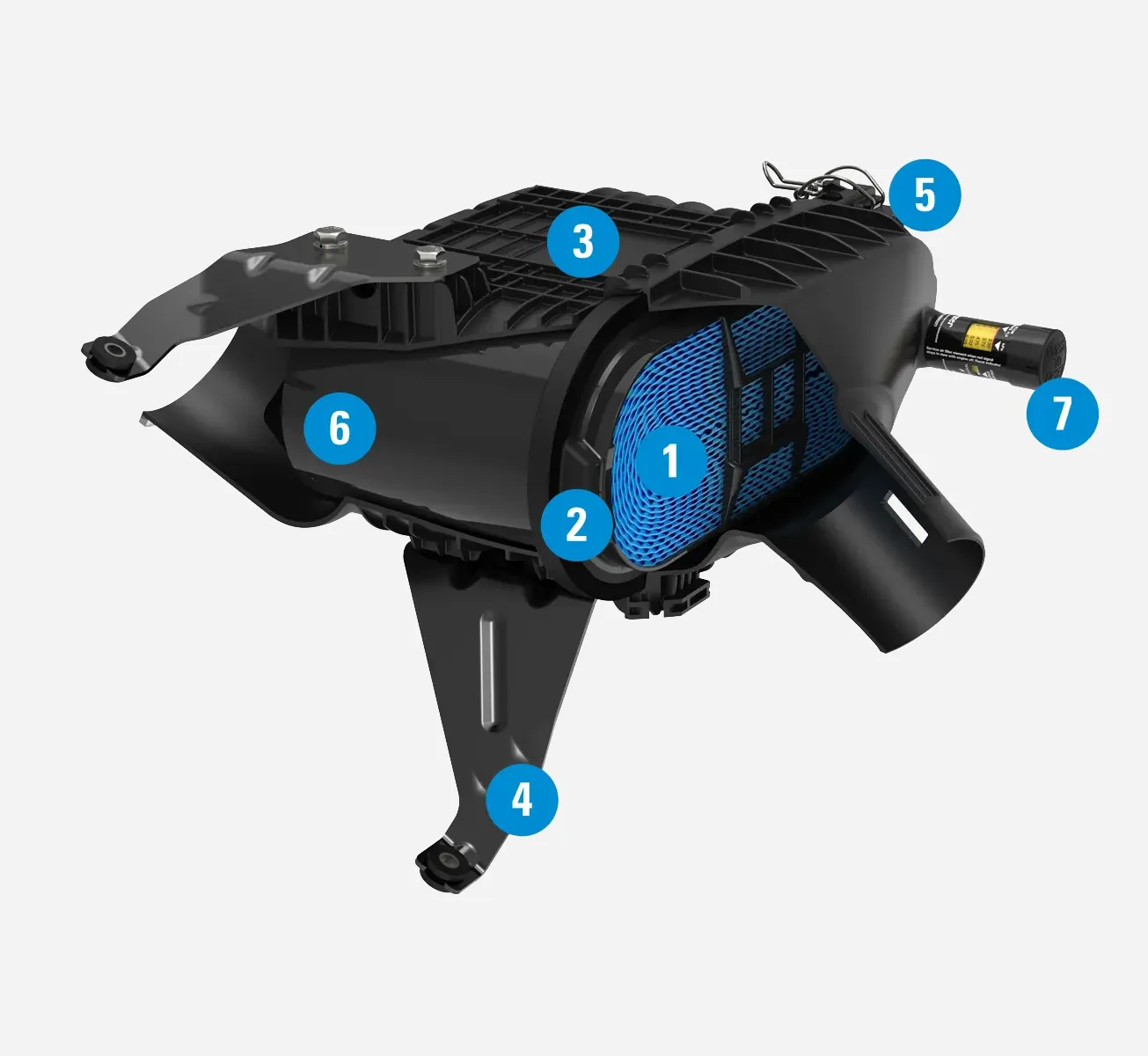

Designed in Australia For The Harshest Conditions

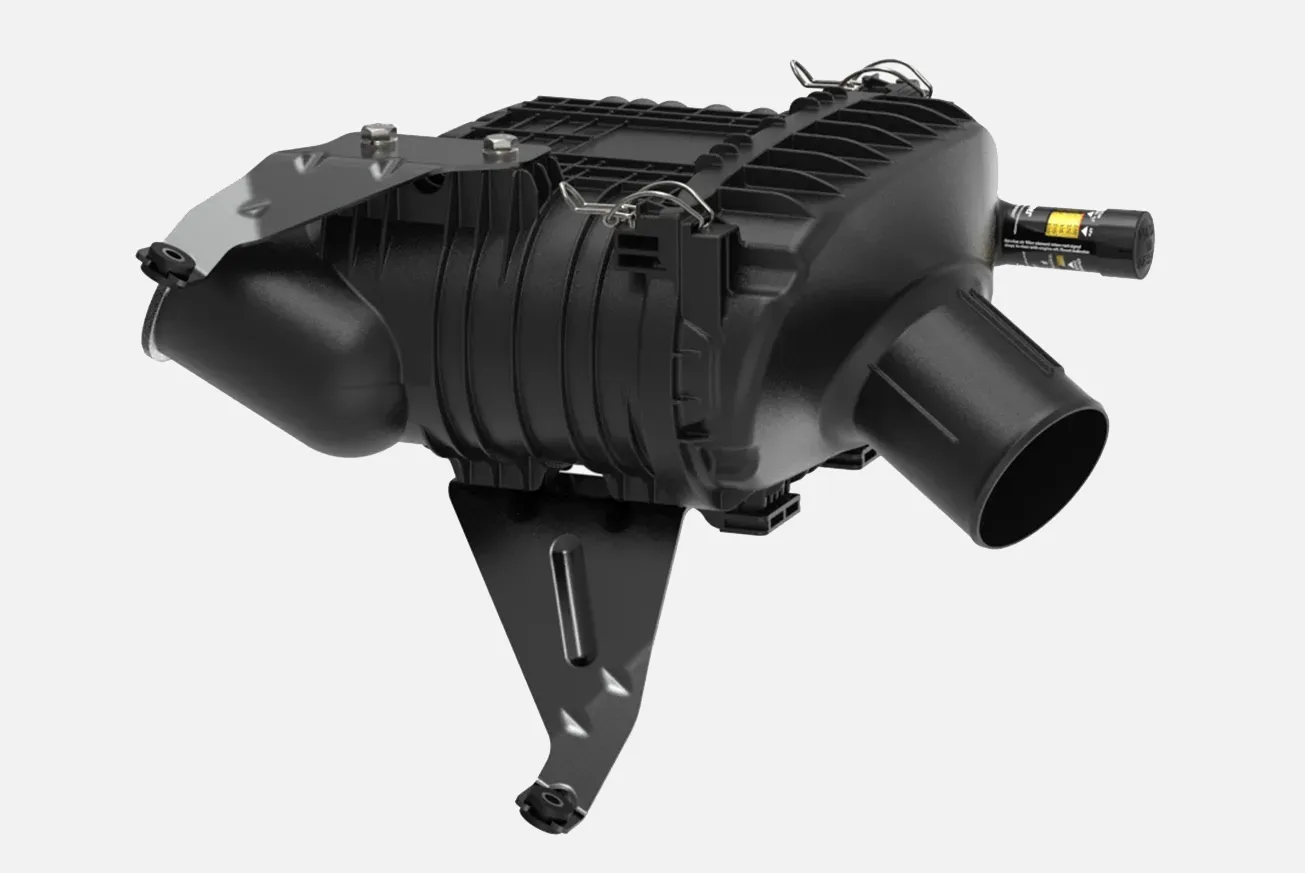

1. PowerCore® Technology
Proprietary Ultra-Web® media provides higher filtration efficiency, comparable dust-holding capacity, and filter service life.
2. Unique Seal Design
Unique sealing technology creates a durable, leak-resistant seal, ensuring a reliable, vibration-resistant interface between the air cleaner and the filter.
3. Rugged Design
Durable construction provides high mechanical strength and heat resistance to withstand high-temperature/humidity working conditions.
4. Mounting Brackets
Heavy-duty construction equipped with replaceable isolators.

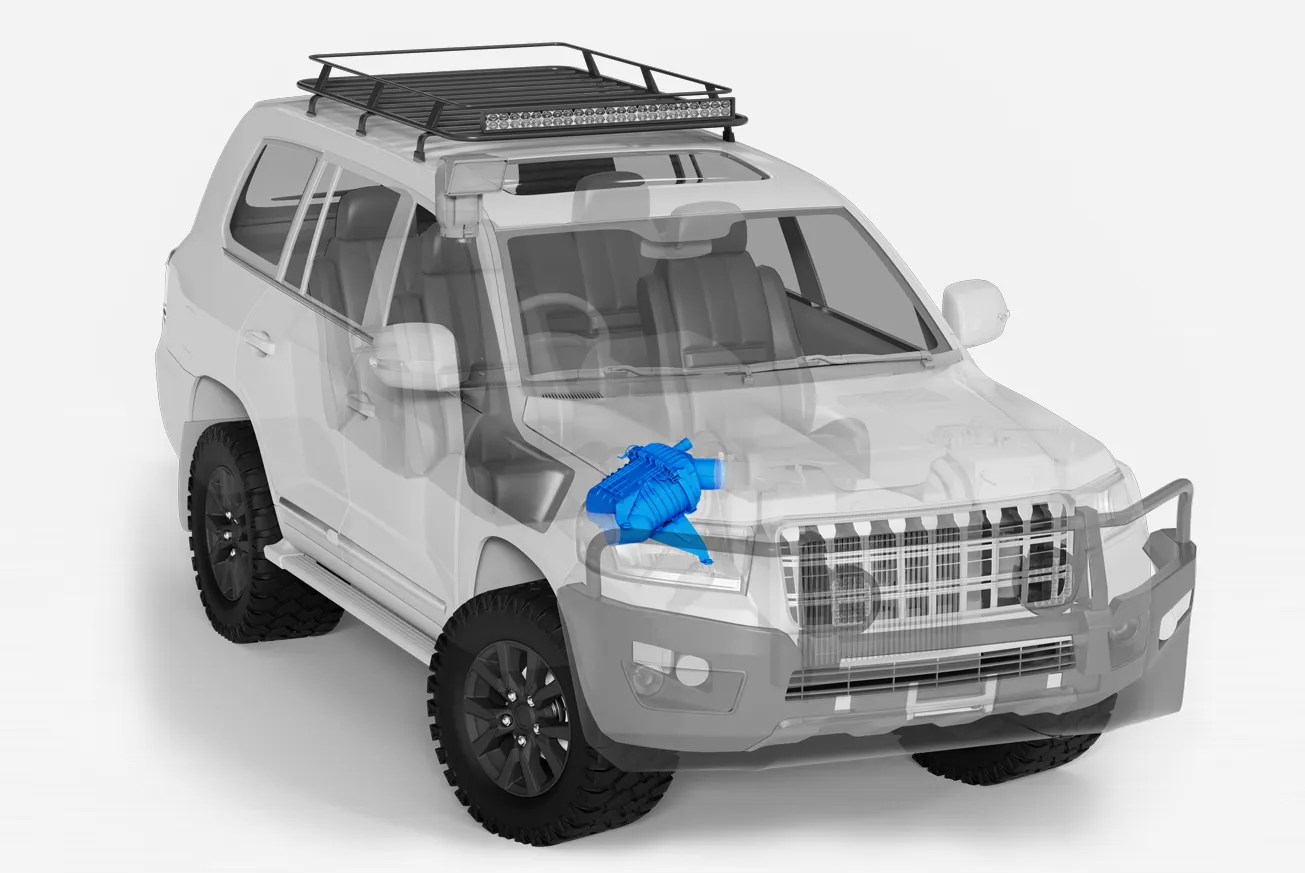

Designed to fit existing mounting location.
5. Easy to Service
Removable access cover. No tools are required for filter change.
6. Compatibility
Compatible with most engine air intake system accessories.
7. Restriction Indicator
Heavy-duty restriction indicator to help achieve maximum filter life.

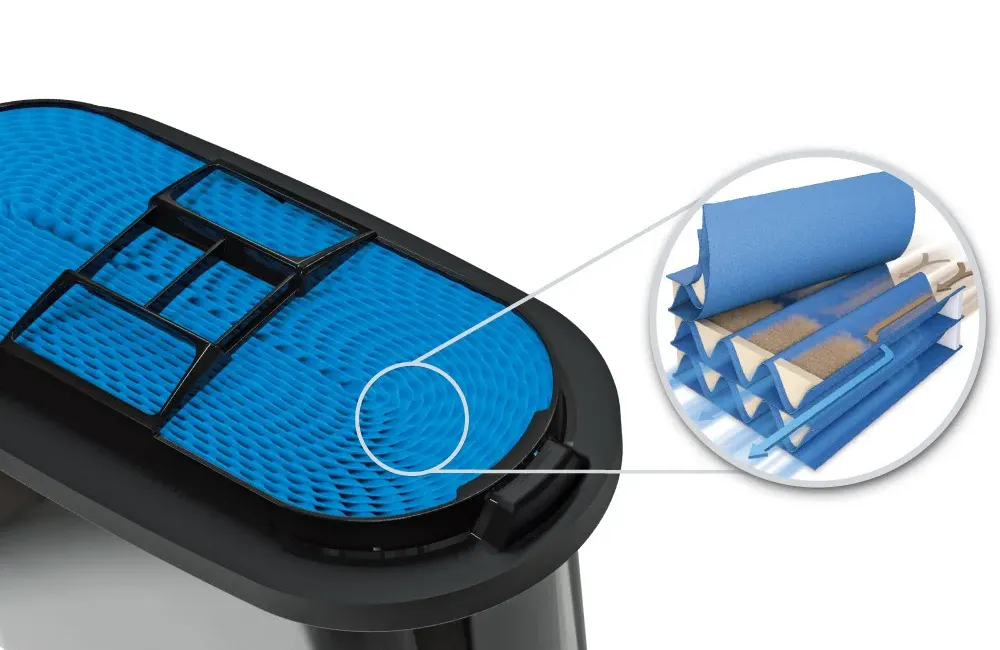

Advanced Ultra-Web® Technology
At the core of this product is Donaldson's proprietary Ultra-Web® media, which employs a corrugated design to:
- Capture dust effectively on the dirty side flutes
- Push air through to the adjacent flutes on the clean side, delivering clean air to your engine
This innovative straight-through airflow design enhances both engine protection and operational performance.
Upgrade with Confidence
Equip your Toyota LandCruiser 200 Series with the filtration system trusted in the most demanding environments.
With Donaldson's XLC200K, you invest in superior engine protection where it matters most — because what's inside truly counts.
Ultra-Web® fine fibers have sub-micron diameters and small inter-fiber spaces, resulting in more contaminants being captured on the surface of the media, promoting lower restriction and long filter life.
Applications
Toyota LandCruiser
Series: VDJ200R
Engine: 4.5L (1VDFTV)
Fuel: Diesel
Years: 2007 - 2021
OE Element: 17801-51020
Toyota LandCruiser
Series: URJ202R
Engine: 4.6L (1URFE)
Fuel: ULP
Years: 2012 - 2019
OE Element: 17801-38030
Toyota LandCruiser
Series: UZJ200R
Engine: 4.7L (2UZFE)
Fuel: ULP
Years: 2007 - 2012
OE Element: 17801-38030
Lexus LX450
Series: VDJ201R
Engine: 4.5L (1VDFTV)
Fuel: Diesel
Years: 2018 - 2021
OE Element: 17801-51020
NOTE: Lexus applications will need to remove the plastic shroud cover above the Airbox.
For ULP models, check the clamp sealing between the housing outlet and intake pipe, as this dimension differs slightly from diesel platforms. It is recommended to use a T-bolt clamp to maintain an adequate critical seal (P148342 T-bolt clamp sold separately). It is recommended to remove the small rubber nodules on the intake pipe hose clamp area to give a completely flat surface before fitting the T-bolt clamp.
Testimonials
Please click on the testimonials below for more information.
Graeme Donegan: 2014 Toyota LandCruiser GXL
Vehicle: 2014 Toyota LandCruiser GXL twin turbo V8 diesel.
The motor has had a remap, 200kw @ 676nm at the ground, plus Manta exhaust along with trans remap and Richards lockup kit.
Distance travelled at time of testimonial: 11,000 km
"I don't think there is a better aftermarket Air cleaner assembly on the market.
Very easy to retrofit. No mods needed. Uses all standard OEM bolt holes. Took me an hour to fit, which included a coffee break.
Engineered to suit the required airflow of the V8 diesel. 3 times the filter surface area of any standard OEM or aftermarket filter. The XLC200K is the only air cleaner assembly that features a restriction indicator to display the remaining service life.
Our LandCruiser is mainly used to pull our Explorex caravan. Since fitting the Donaldson XLC200K assembly, I am getting better fuel economy, equating to a saving of 1 litre per 100 kilometres.
Because of the large surface area of the Donaldson XLC200K filter, I believe change intervals will be around 40,000 to 50,000 kms; not only does it work it looks good too."
Jamie Prado: 2021 Toyota LandCruiser twin turbo V8 diesel
Vehicle: 2021 Toyota LandCruiser twin turbo V8 diesel
Distance travelled at time of testimonial: 16,000 km
"I was lucky enough to be included in the trial for the XLC200K. Having heard on the grapevine that Donaldson was working on air filtration for the 200 series, I contacted Nik, Product Manager at Donaldson. Knowing they're the global leader in filtration, I was only willing to trust them with my brand new LandCruiser 200 series and not a randomly fabricated airbox.
I was lucky to have the XLC200K fitted for my 16,000km lap of Australia. We covered mostly dirt roads, beaches, high temperatures in the northern states, and countless deep river crossings. The Donaldson Airbox performed exceptionally. During my lap, I reported back to Nik with regular updates of my findings and what terrain I was covering.
Donaldson's innovation and persistence to release a product to market only after it has undergone thorough, real-world testing is a testament to their core values. Donaldson went above and beyond to ensure their product was solid, was being tested in the real world, and was performing as expected.
Donaldson filled me with confidence from day 1 with their technical knowledge and ongoing support. Donaldson was always quick to respond and could answer any questions I had, no matter how technical. I'm grateful to have been a part of this trial and to be treated with an exceptionally high level of customer service."
Frequently Asked Questions
Please click on any of the questions below for more information.
How often should I change the filter element?
The XLC200K is equipped with a built-in restriction indicator. We recommend replacing the filter element only when the indicator turns red or during routine maintenance intervals, at least every 12 months, even if the indicator has not turned red.
Will the PowerCore 4x4 air cleaner work with my Snorkel?
The PowerCore 4x4 XLC200K air cleaner will work with most aftermarket snorkels.
Where can I buy the PowerCore 4x4 air cleaner?
The PowerCore 4x4 air cleaner for the 200 Series Toyota LandCruiser is available now from all leading 4x4 filtration stockists.
If you have any additional questions, please click here to contact Donaldson.

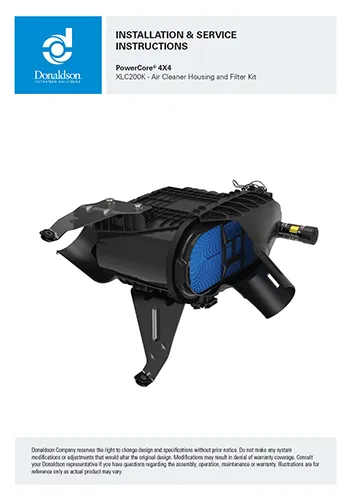

Downloads
Register
Join Donaldson's PowerCore® 4x4 mailing list to receive product release updates, PowerCore 4x4 news, and information on our upcoming 4x4 events.
LandCruiser is a registered trademark of Toyota Motor Corporation.
