Toyota HiLux N80/N90

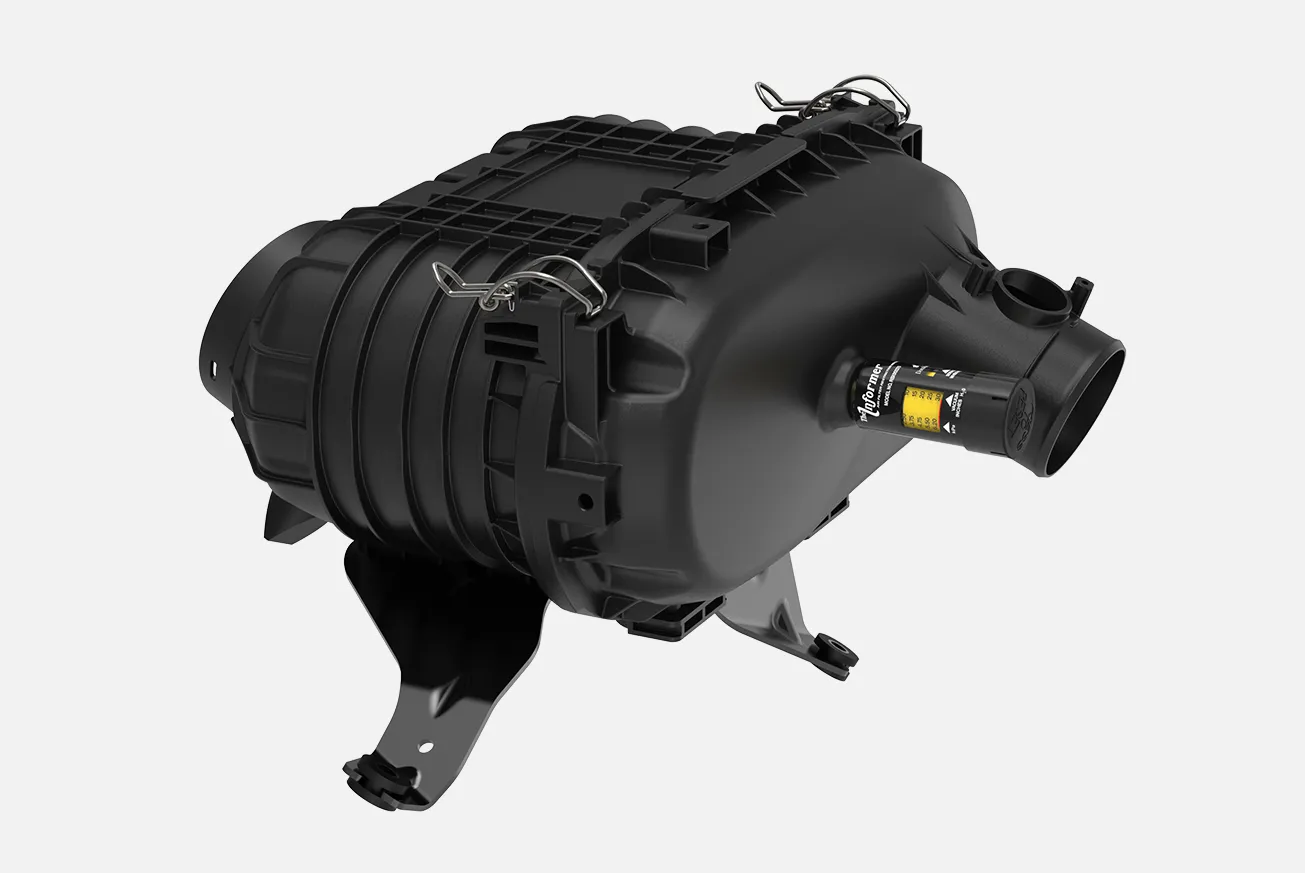

High Performance Air Cleaner Housing + Filter Kit
The XHLX80K Air Cleaner Housing + Filter Kit is meticulously engineered with Donaldson's advanced PowerCore® filtration technology, providing superior engine protection and exceptional performance in a compact, easy-to-install system.
Enhanced Performance. Superior Protection.
Air intake systems are crucial for delivering clean air to your engine.
Improper filtration systems can lead to increased fuel consumption, excessive engine damage, and unscheduled servicing.
Engineered using Donaldson's proprietary filtration technology, the robust, compact Donaldson PowerCore® 4x4 airbox and filter element outperforms standard OEM panel filters with:

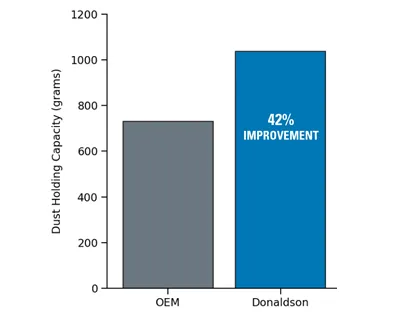

- Greater holding capacity and a built-in heavy-duty Restriction Indicator, resulting in far more time between each service.

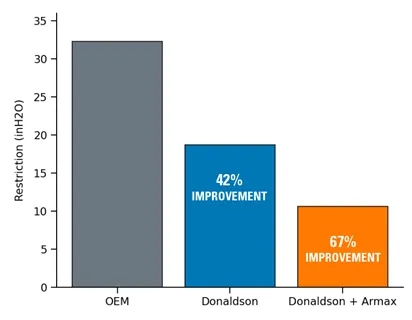

- Lower initial restriction at equal airflow, meaning your engine runs smoother, with better performance and fuel efficiency.

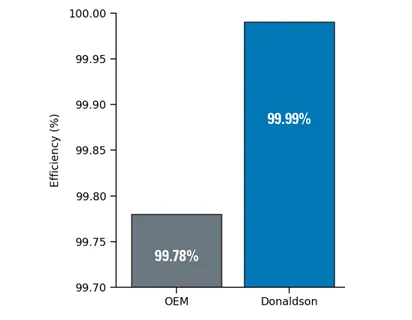

- Proven performance under ISO5011 standards, delivering 99.99% filtration efficiency, compared to 99.78% from OEM panel filters, for superior protection against harmful contaminants.

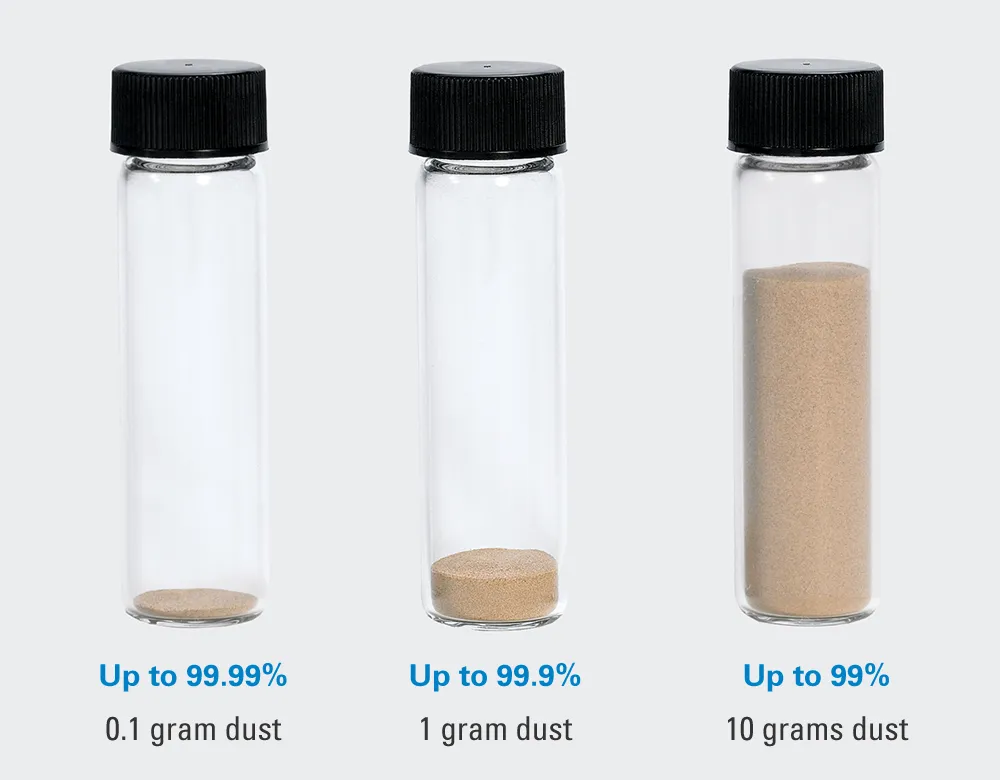

The Power of 99.99%
1kg of dust? The extra efficiency makes a world of difference.
The Key Advantages of PowerCore® 4x4
High Initial Efficiency
Outperforms standard cellulose filters with higher initial efficiency.
Long-lasting Protection
Maintains consistently high efficiency throughout its lifespan.
Ultimate Engine Safety
Protects against sub-micron particles for industry-leading engine protection.
Extended Filter Life
Exceptional dust-holding capacity for longer-lasting performance
PowerCore® 4x4 housings and filter kits have become the benchmark for high-performance, reliable filtration in the most challenging terrain.
Equip your HiLux with the best—choose Donaldson.

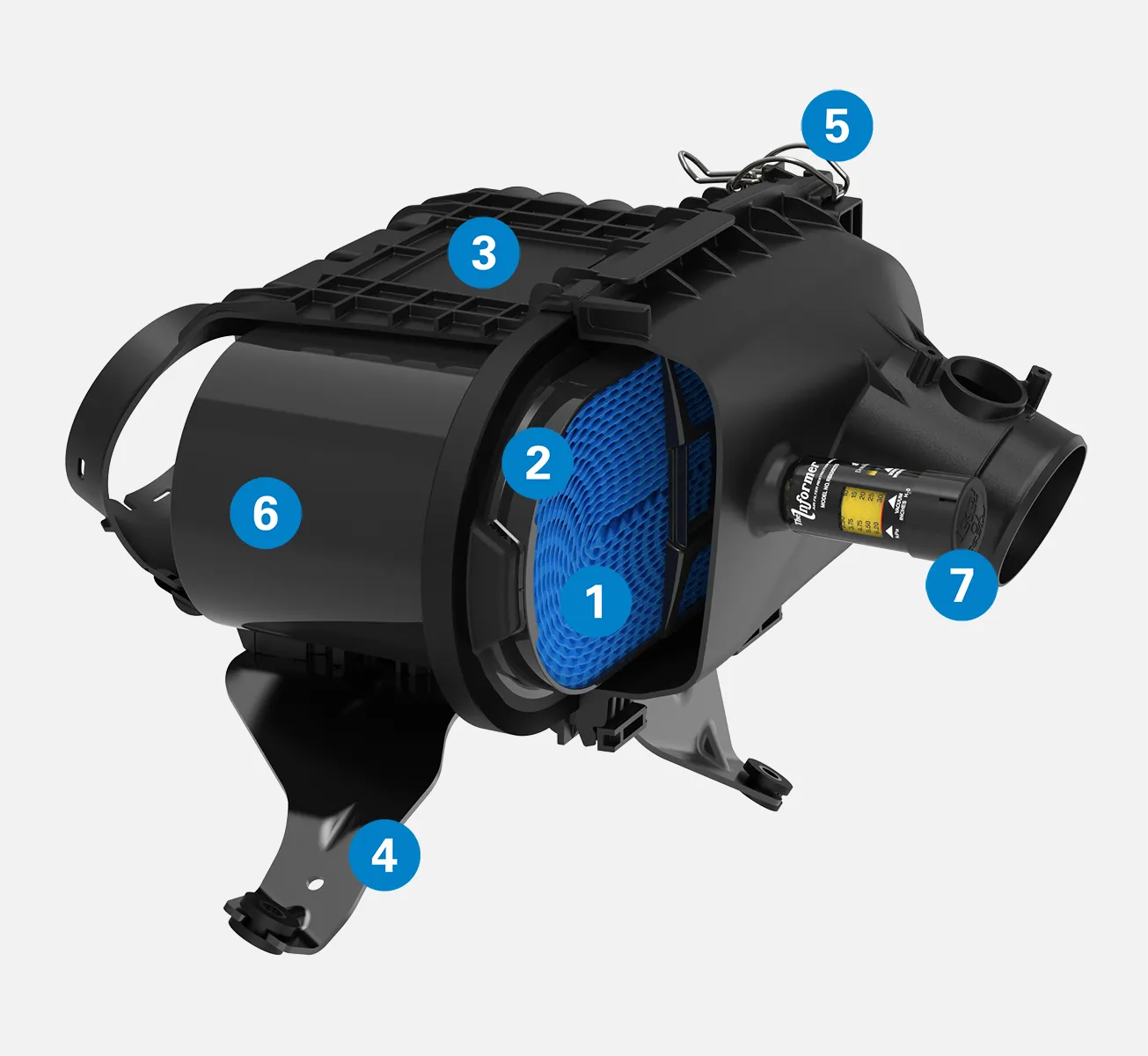

Designed in Australia For The Harshest Conditions
1. PowerCore® Technology
Proprietary Ultra-Web® media provides higher filtration efficiency, superior dust-holding capacity, and filter service life.
2. Unique Seal Design
Unique sealing technology creates a durable, leak-resistant seal, ensuring a reliable, vibration-resistant interface between the air cleaner and the filter.
3. Rugged Design
Durable construction provides high mechanical strength and heat resistance to withstand high-temperature/humidity working conditions.
4. Mounting Brackets
Heavy-duty construction equipped with replaceable isolators.
Designed to fit existing mounting location.
5. Easy to Service
Removable access cover. No tools are required for filter change.
6. Compatibility
Compatible with most engine air intake system accessories.
7. Restriction Indicator
Heavy-duty restriction indicator to help achieve maximum filter life.

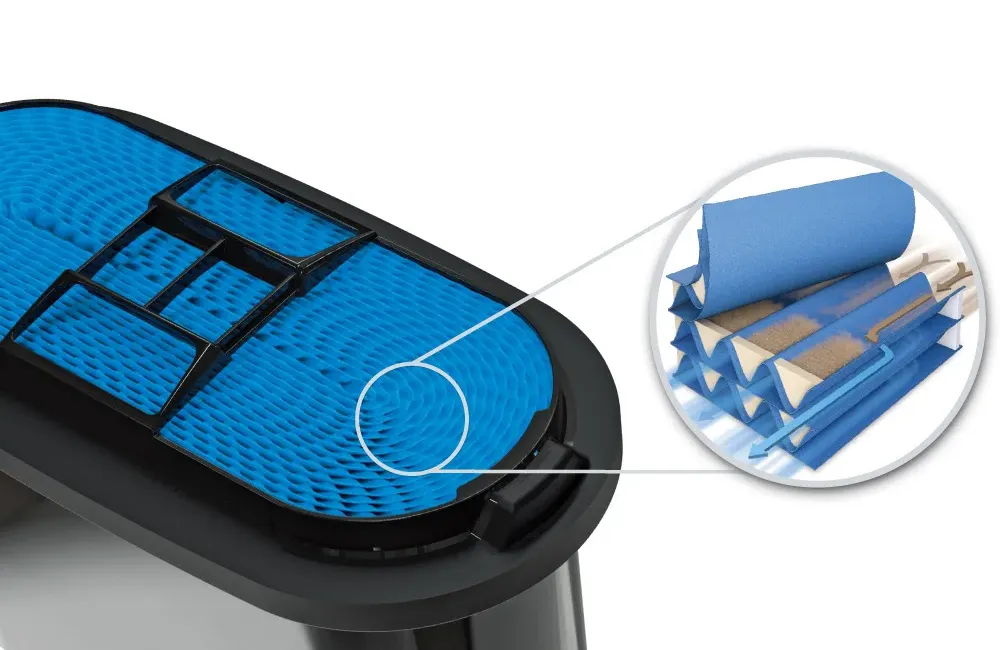

Advanced Ultra-Web® Technology
At the core of this product is Donaldson's proprietary Ultra-Web® media, which employs a corrugated design to:
- Capture dust effectively on the dirty side flutes
- Push air through to the adjacent flutes on the clean side, delivering clean air to your engine
This innovative straight-through airflow design enhances both engine protection and operational performance.
Upgrade with Confidence
Equip your Toyota HiLux with the filtration system trusted in the most demanding environments.
With Donaldson's XHLX80K, you invest in superior engine protection where it matters most — because what's inside truly counts.
Ultra-Web® fine fibers have sub-micron diameters and small inter-fiber spaces, resulting in more contaminants being captured on the surface of the media, promoting lower restriction and long filter life.
Applications
Replaces the OE Genuine Service Element 17801-0L040, 17801-0L050 on the following models:
Toyota HiLux
Series: GUN123R
Engine: 2.8L Diesel, 1GD-FTV
Years: 2015 - 2017
Toyota HiLux
Series: GUN125R
Engine: 2.4L Diesel, 2GD-FTV
Years: 2015 - 2025
Toyota HiLux
Series: GUN236R
Engine: 2.8L Diesel, 1GD-FTV
Years: 2025 - On
Toyota HiLux
Series: GUN126R
Engine: 2.8L Diesel, 1GD-FTV
Years: 2015 - 2025
Toyota HiLux
Series: GUN135R
Engine: 2.4L Diesel, 2GD-FTV
Years: 2015 - 2025
Toyota Fortuner
Series: GUN156R
Engine: 2.8L Diesel, 1GD-FTV
Years: 2015 - On
Toyota HiLux
Series: GUN136R
Engine: 2.8L Diesel, 1GD-FTV
Years: 2015 - 2025
Toyota HiLux
Series: GUN226R
Engine: 2.8L Diesel, 1GD-FTV
Years: 2025 - On
Toyota HiLux
Series: GUN122R
Engine: 2.4L Diesel, 2GD-FTV
Years: 2015 - 2019
Toyota HiLux
Series: GUN227R
Engine: 2.8L Diesel, 1GD-FTV
Years: 2025 - On

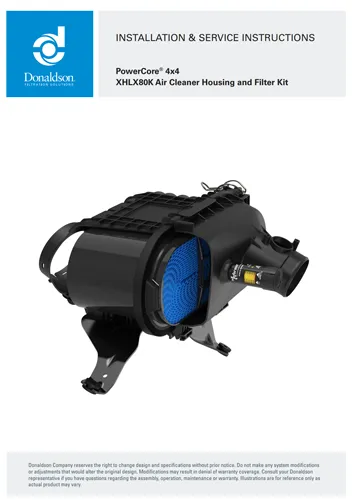

Installation Downloads
Frequently Asked Questions
How often should I change the filter element?
The XHLX80K is equipped with a built-in restriction indicator. We recommend replacing the filter element only when the indicator turns red or during routine maintenance intervals, at least every 12 months, even if the indicator has not turned red.

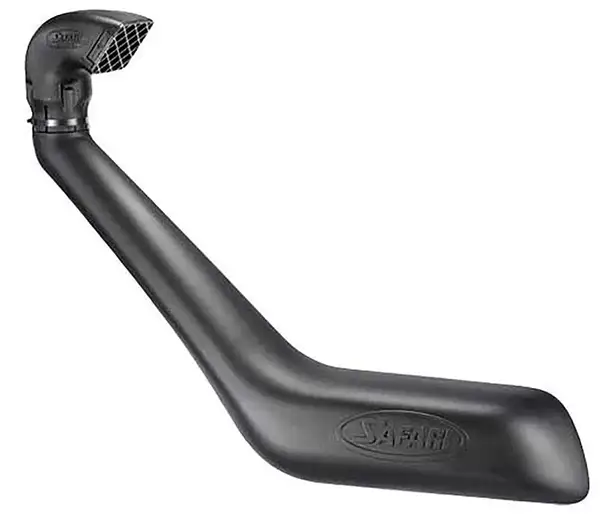

Will the PowerCore 4x4 air cleaner work with my Snorkel?
The PowerCore 4x4 XHLX80K air cleaner will work with most aftermarket snorkels. Some aftermarket snorkel inlet adaptors (e.g., the ARMAX/V-Spec adaptor) may require the adaptor to be trimmed by approximately 30mm to allow proper fitment. For more information, please see this page.
If you have any additional questions, please click here to contact Donaldson.
